‘Spatial Manager’ data tables (CAD versions), either imported from any data source or user-defined, can be edited in order to create, delete and modify their fields. One of the options supported in the Fields definition is to define/edit their default values, which allows to speed up data entry in many cases where the values for the different attached objects are the same or similar
Related videos: AutoCAD / BricsCAD / ZWCAD / GstarCAD
‘Spatial Manager’ Fields default values definition/edition

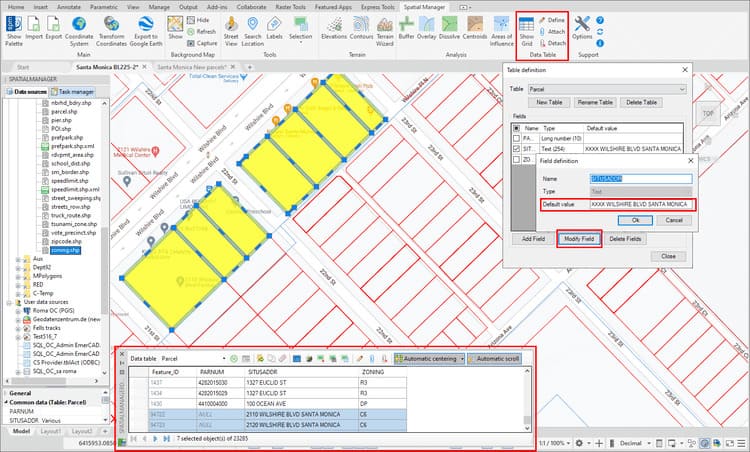

In the example that you can review in the above videos, we are working in a drawing including parcels that have an attached data table with several Fields. We will incorporate a few new parcels coming from another drawing, whose values for some of these Fields are the same or very similar
Before attaching the new parcels to the data table, we modify the default values of these fields to facilitate their subsequent editing in the Data Grid. This modification in the Field definitions can be carried out as many times as needed so that the new objects attached to the table adopt the default values of each Field

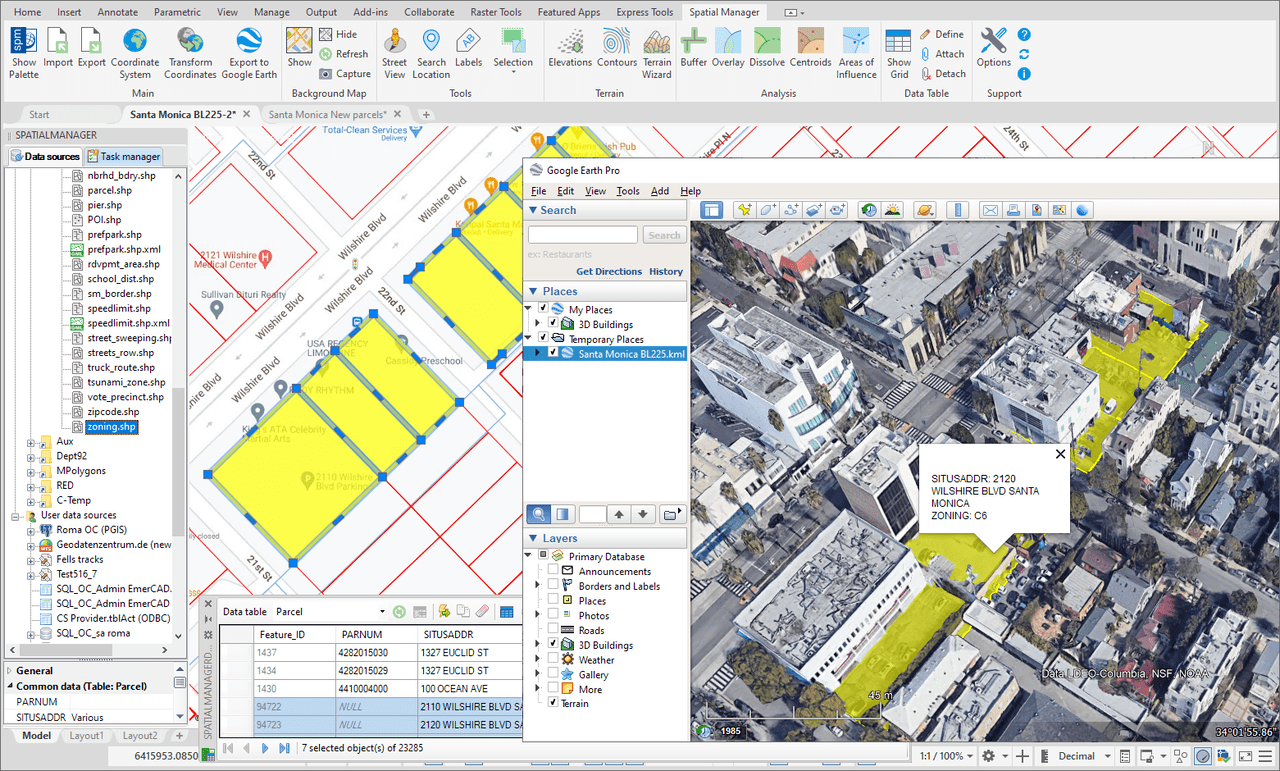

The new parcels exported to Google Earth
After correcting the appropriate data for the new parcels, we have exported them to Google Earth in order to visualize their geographical location and data
Enjoy the videos
Learn more about managing data Tables and Fields in the ‘Spatial Manager’ technical Wiki:
