SPM for BricsCAD > Features > Terrain wizard

Terrains in BricsCAD

Create Terrains and other related objects (3D Points, Contours, etc.) from 3D data or from Elevation services in BricsCAD

The Spatial Manager™ for BricsCAD Terrain wizard allows to the BricsCAD users create Terrains and other related objects (3D Points, Contours, etc.) from 3D data (Points, Meshes, etc.) or from online Elevation services

Customize Contours (2D or 3D, parametric Labeling, etc.), choose advanced options in the 3D creation processes, etc.

3D Points<span style='font-size: 1rem;'> - <a href='3d-points/' class='app_color_link'>More info ></a></span>

3D Points

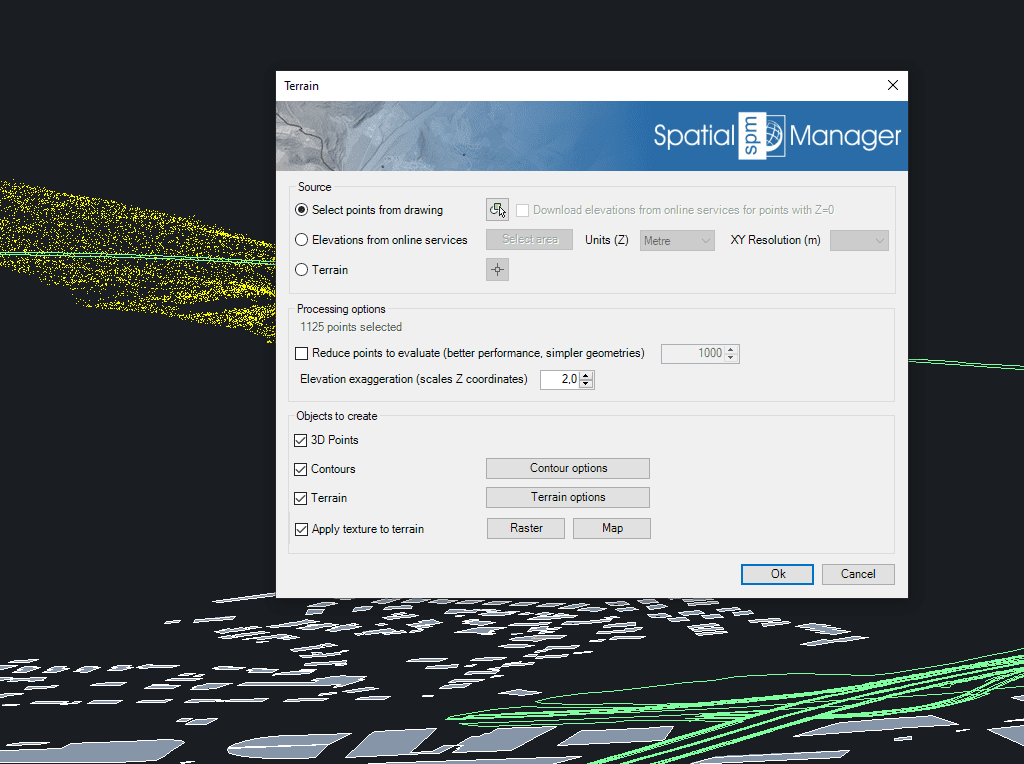

Use Points or Blocks selected in the drawing or built from Elevation service providers in any selected area. You can also use already generated terrain as source 3D geometry

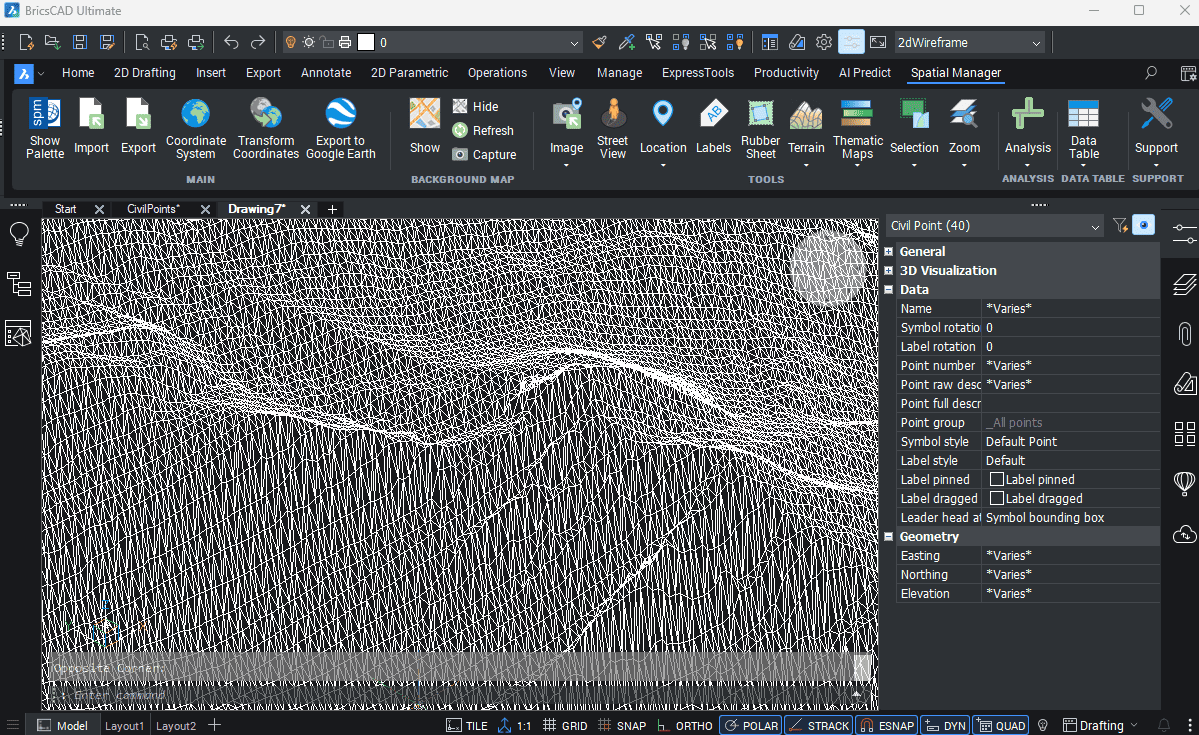

Use BricsCAD Civil Points<span style='font-size: 1rem;'> - <a href='use-bricscad-civil-points/' class='app_color_link'>More info ></a></span>

Use BricsCAD Civil Points

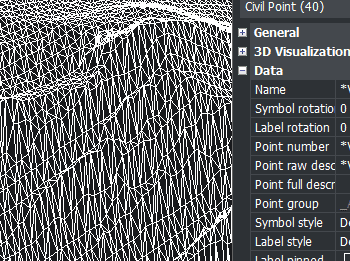

Create surfaces from BricsCAD Civil Points easily with Spatial Manager, optimizing project workflows

2D or 3D Contours<span style='font-size: 1rem;'> - <a href='2d-or-3d-contours/' class='app_color_link'>More info ></a></span>

2D or 3D Contours

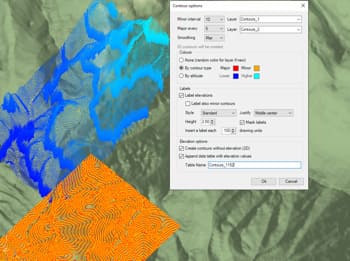

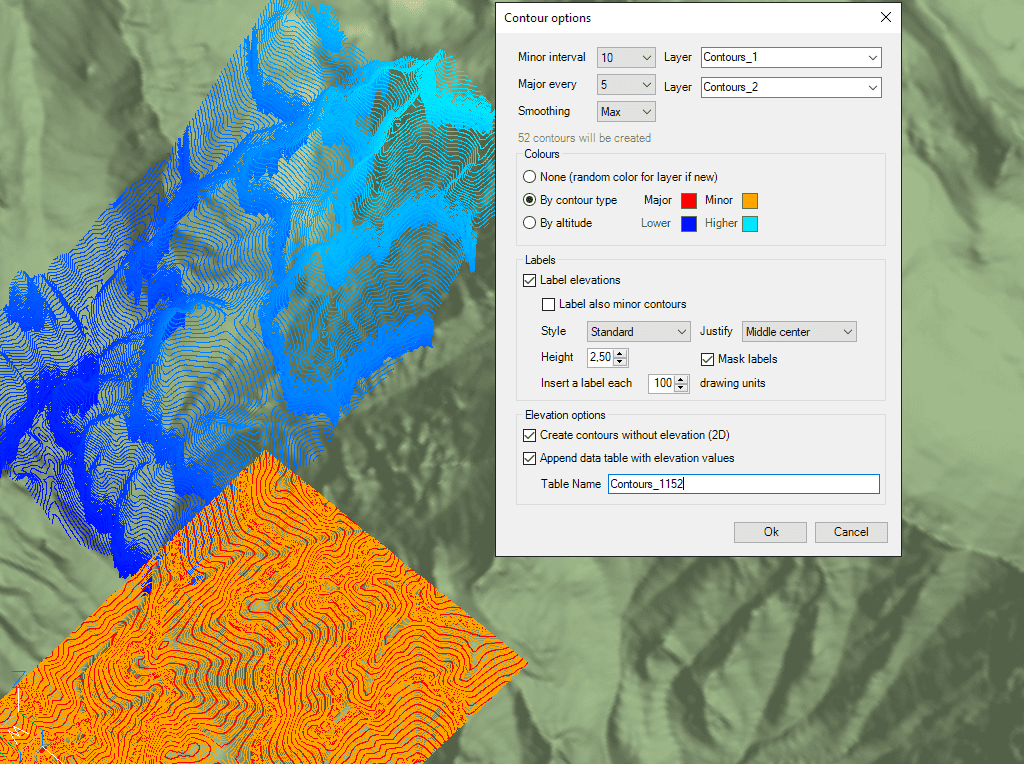

Create minor and major Contours, label Contour altitudes, separate in different Layers and different color models. Optional attached Data Tables will include Contour elevation values and types

3D Terrains<span style='font-size: 1rem;'> - <a href='3d-terrains/' class='app_color_link'>More info ></a></span>

3D Terrains

3D models generation using 3D Meshes or other CAD/BIM objects from the selected 3D objects

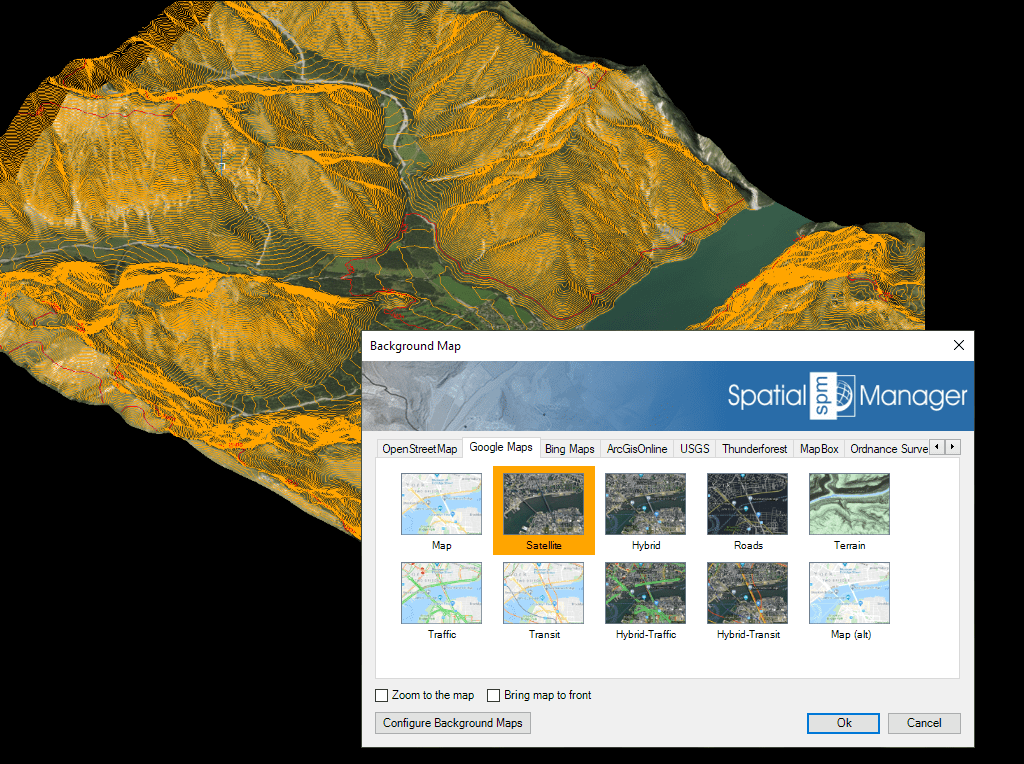

Automatic image projection and fitting of any Background Map (preset or user-configured) on one or more Terrains in their actual location

Related Posts
Add elevation data to existing points in DWG/DXF

Spatial Manager have some utilities for working with terrains and elevations, one of them allows to search elevations for existing points. Doing some steps it is possible to create a... more

Extract 3D points from other objects

Spatial Manager (CAD versions) includes the option to Insert Nodes when importing objects such as Polylines or Polygons. These nodes can be created as Points or as Block Inserts (if... more

Contours and imported objects Label Masks

In order to enhance the visibility of Contour Labels, ‘Spatial Manager’ (CAD versions) now includes some new options which can also be applied to the object Labels while Importing. In... more

Contours: 2D, 3D, Labels, and more options...

Spatial Manager Terrain Assistant, available in the CAD versions (AutoCAD, BricsCAD and ZWCAD), provides the user with intuitive tools for processing 2D/3D Terrain information (Points, Contours, and Digital Terrain Models).... more

frequently asked questions
Current compatible BricsCAD applications:
  • Versions: From v.13 to v.25 both included (Windows Only)
  • Editions Pro and Platinum (Classic and Lite editions are not compatible)
System requirements:
  • Windows 7 or higher
  • 500 MB free disk space, or more
  • Windows Installer 3.1 or later
