Scan and recovery of data tables from drawing objects


‘Spatial Manager’ imports, exports and manages alphanumeric data attached to the graphical objects. This data is stored in the objects and in the drawing itself as XDATA/EED, and you can rebuild the data Table definitions from the drawing objects own data if needed

Related videos: AutoCAD / BricsCAD / ZWCAD

Scan a recover data tables in a drawing

Scan a recover data tables in a drawing

Sometimes you can find drawings where the data Table definitions are missing, even if the drawing contains objects that have attached data (XDATA/EED)

The most common cases in which this situation can occur are when you copy and paste objects between drawings, when you save a drawing using WBLOCK, or when you insert a drawing into another drawing

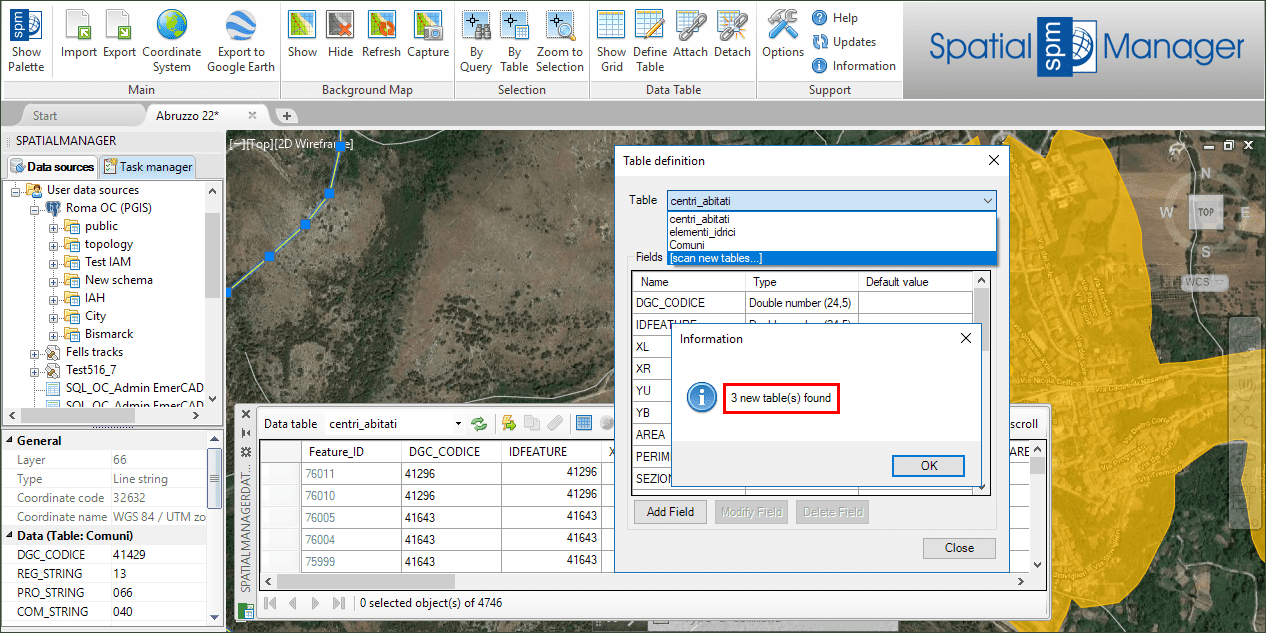

As you can see in the videos above, the application includes a tool that allows you to scan and recovery the data Tables from the data attached to the objects

Take a look…
