Small automated things that make your life easier

‘Spatial Manager’ (for AutoCAD, BricsCAD or ZWCAD) includes some little-known automations that make the everyday application tasks more comfortable. This article and the included videos review some of these little automatic assistances

Related videos: AutoCAD / BricsCAD / ZWCAD

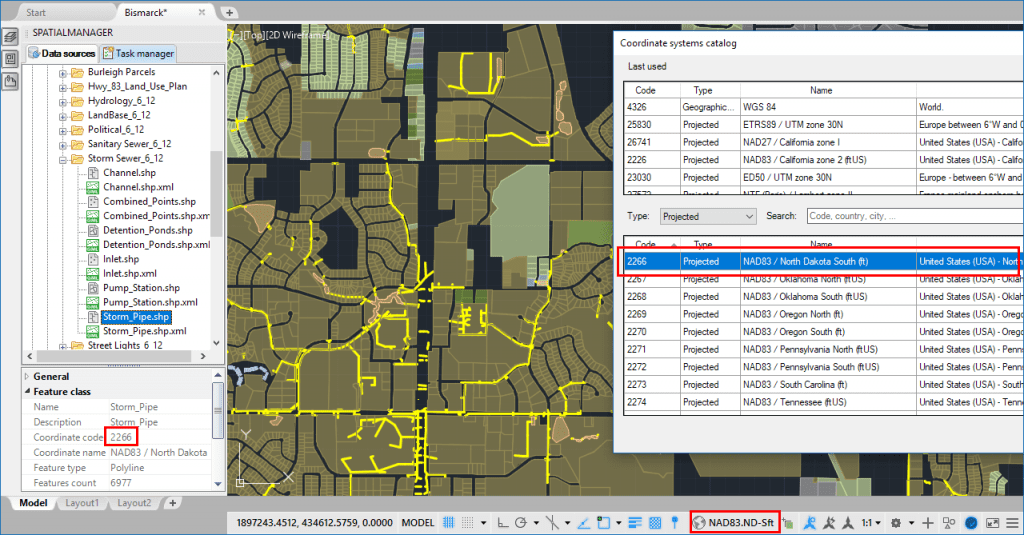

Little automation helps - Spatial Manager

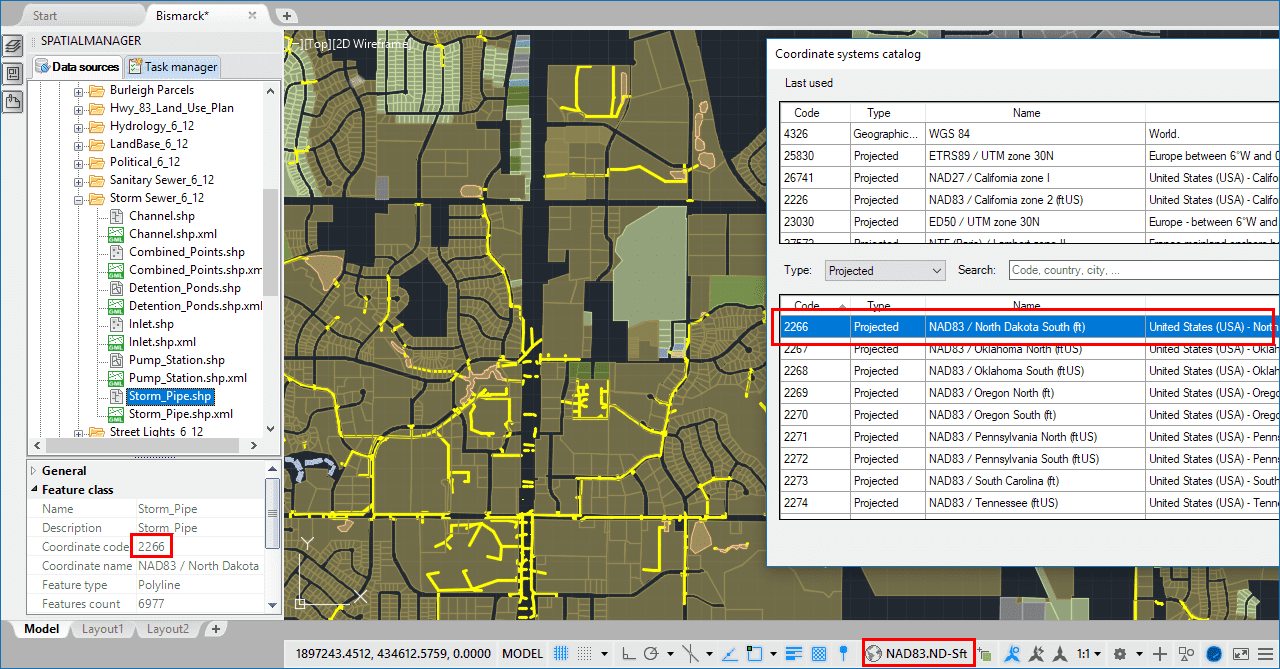

Little automation helps – Spatial Manager

  1. Automatic assignment of the Coordinate System (CRS) to an unreferenced (no CRS assigned) drawing when importing from a source whose CRS is known. This simplifies the (likely) assignment of a CRS from the origin to the target
  2. If the drawing is empty, the import processes Zoom to the imported objects. So that you can easily locate them
  3. Automatic assignment of a projected Pseudo-Mercator CRS to the drawing when importing into an unreferenced drawing from Google Earth,  OpenStreetMap, GPX and others, or when showing a Background Map (if the drawing is empty). These formats use a geographic CRS to store the spatial information, and the users are usually interested in getting projected spatial information into the drawings. This automation can be deactivated (read the next paragraph)
  4. In addition, in the previous import scenario, the “Transform Coordinates” option is also automatically activated. You can uncheck this option in the Importing Wizard. In this case, the automations #3 and #4 would be not effective but the automation #1 would be applied
  5. Automatic activation of the “Transform Coordinates” option while importing, if the drawing has any assigned CRS and the source has the CRS defined (or the user defines it while importing)
  6. Automatic mapping of appropriate data column names as X Y Z Coordinates when importing from user ASCII files. Many names, such as X, Lat, Longitude, H, etc. are considered valid

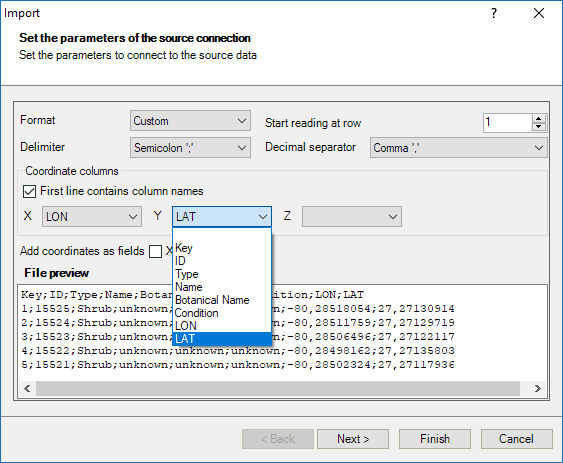

Automated XYZ columns selection

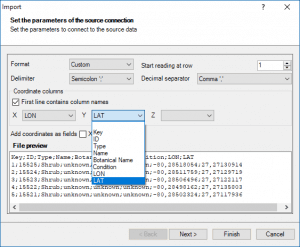

Automated XYZ columns selection

Learn more about Importing geo-spatial data in ‘Spatial Manager’:
