New ‘Spatial Manager’ 6.2

August 10, 2020

Announcement /


A new ‘Spatial Manager’ version has been released (6.2). Besides including the one-step transformation of the drawing’s Coordinate System, one of the most demanded functions by the users, it will allow you to work with GeoPackage files and many more. And the CAD version is fully compatible with AutoCAD 2021 (and other Autodesk 2021 products), BricsCAD 20 and ZWCAD 2021




Transform the drawing Coordinate System (click to enlarge)

Transform the drawing Coordinate System (click to enlarge)

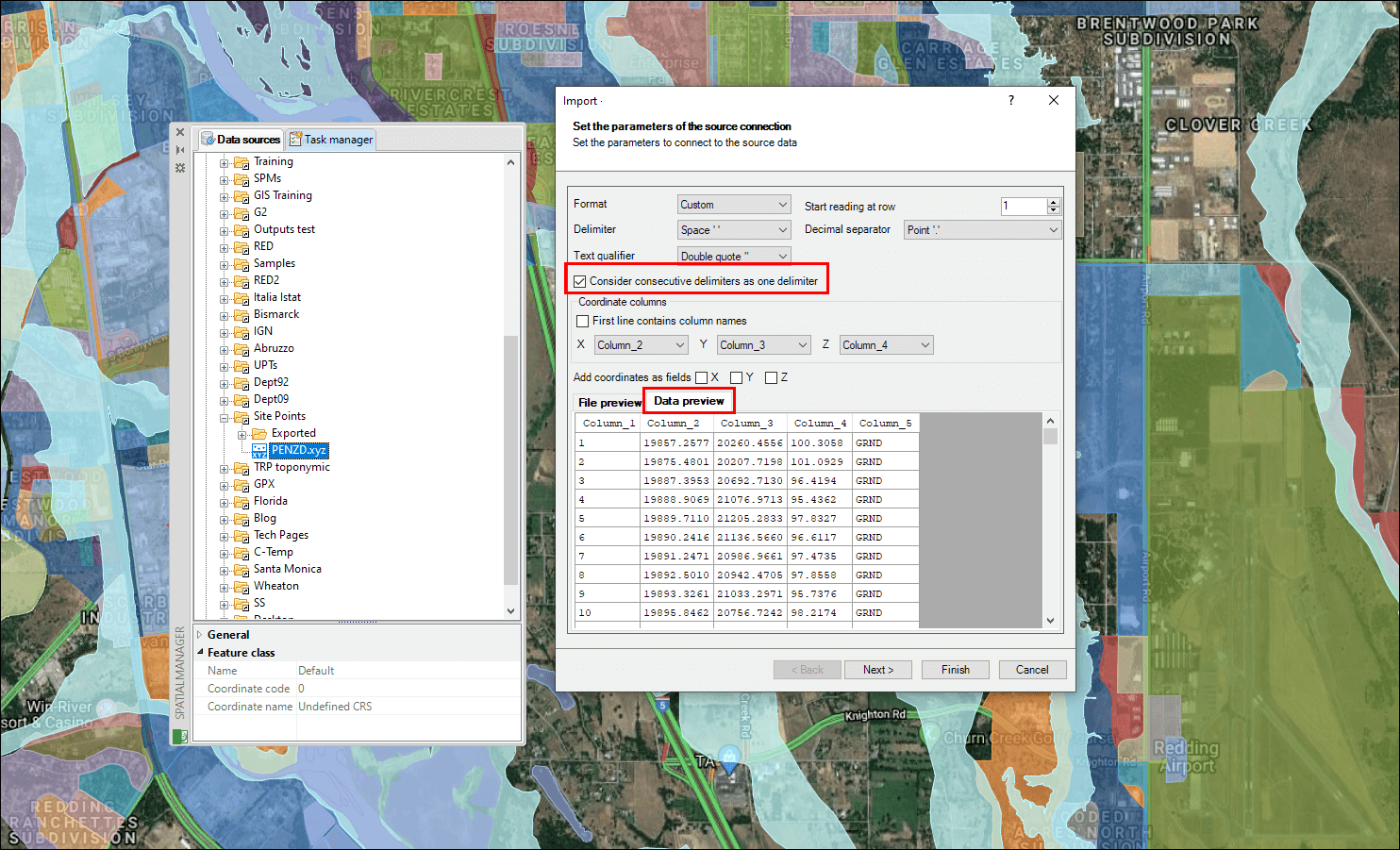

Tabular ASCII Data Provider (click to enlarge)

Tabular ASCII Data Provider (click to enlarge)

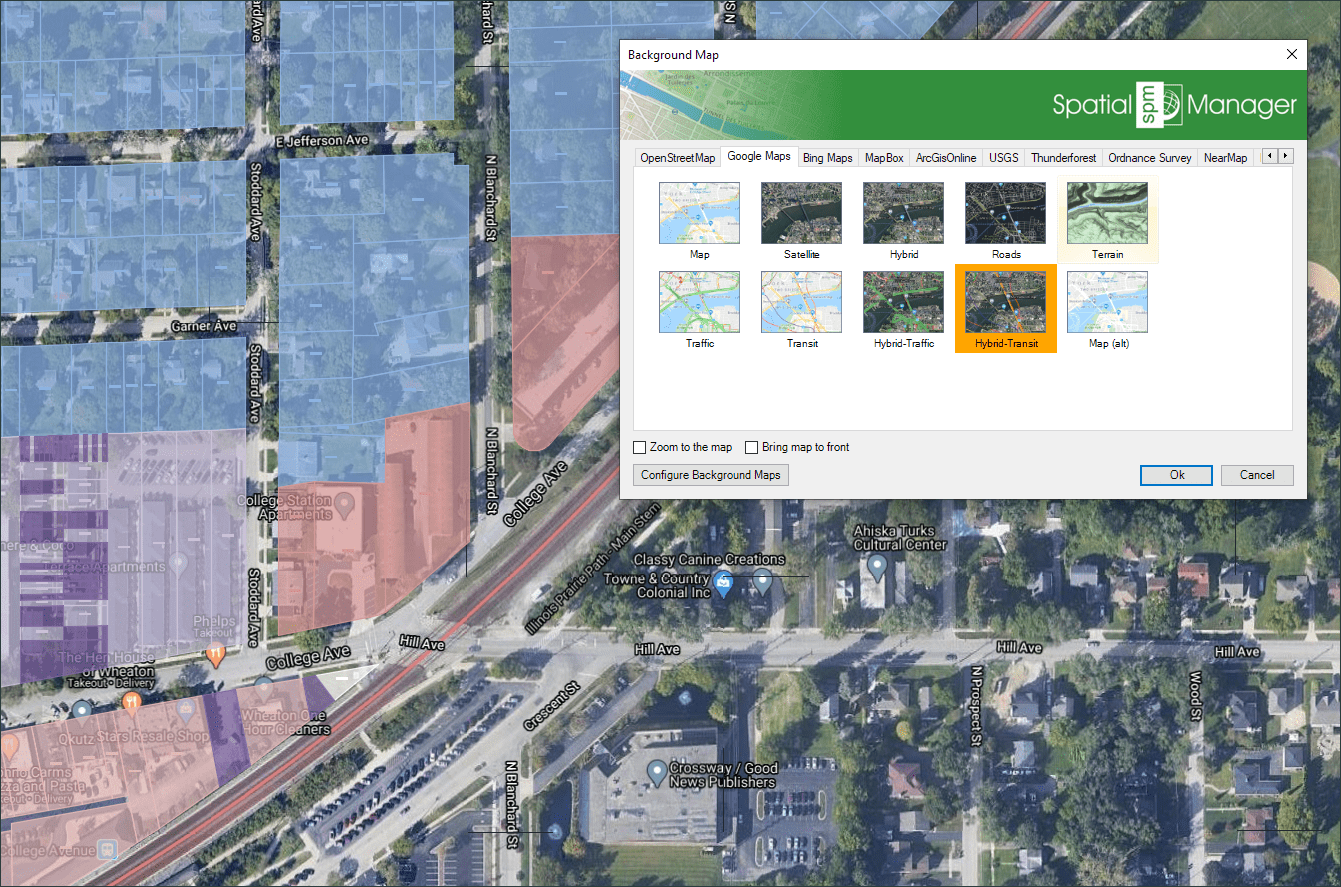

Enhanced application preset Background Maps (click to enlarge)

Enhanced application preset Background Maps (click to enlarge)



New features and improvements:

  • Transform the drawing Coordinate Reference System (CRS)

    • New SPMTRANSFORMCRS command, which automatically creates a new drawing including geometrically regenerated objects from the current drawing according to the transformation between two CRSs (see the above image)
  • Import / Export
    • New GeoPackage data provider that will allow you to import or load geospatial data from *.gpkg files
    • The ASCII data provider can now preview data fields in tabular format (see the above image), and it has been enhanced in order to identify consecutive separators as one

    • You can optionally Mask the object labels when importing
    • More object properties can now be exported as attached data (Color, Linetype, Lineweight, etc.)
    • It is now possible to add a parameter for a Schema in the SQL Server data provider
  • Terrains
  • Dynamic Background Maps
    • Some groups of preset Background Maps (OpenStreetMap, Google Maps, MapBox, etc.) has been expanded and/or improved (see the above image)
  • Coordinate systems
    • The EPSG tables (CRSs and other objects) have been updated to version 9.8.12 (v10 model)
  • AutoCAD 2021, BricsCAD 20, ZWCAD 2021 compatible
  • … and more

Note: Some functionalities only apply to CAD versions, and some of them are only available in the Standard or Professional editions


Take a look at the application Changelogs in order to review the complete list of News, Improvements and Fixes in this version:

· Spatial Manager for AutoCAD
· Spatial Manager for BricsCAD
· Spatial Manager for ZWCAD
· Spatial Manager Desktop
