Import 3D Shapefiles (SHP) in AutoCAD

September 05, 2014

CAD L1 (Basic) / , ,


Some 2D Shapefiles (SHP) may include 3D information inside its associated alphanumeric data table. For example, it is quite common to find the values ​​of the elevation and height of the polygon features inside some fields of the data table

3D and pseudo-3D Shapefiles (SHP)

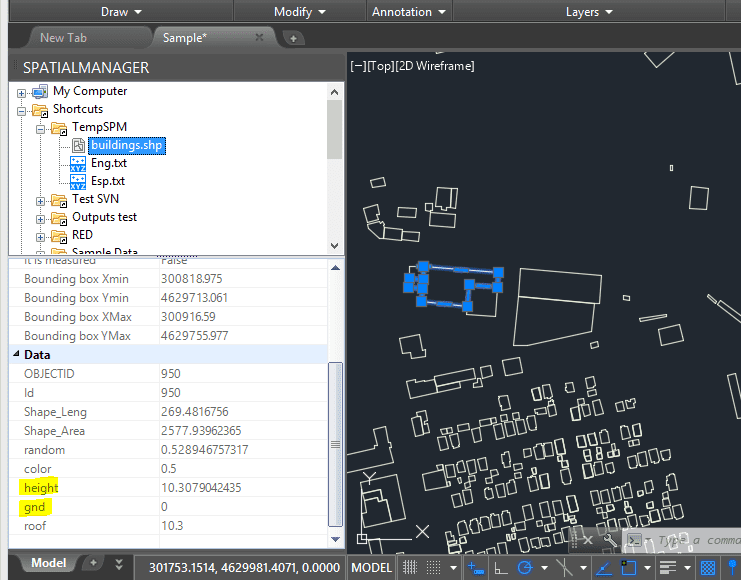

There are many Shapefiles (SHP) containing complete 3D information inside their own geometry data, as in the PointZ, PolygonZ, etc. SHP files, and even the 3D information can be included as “M” data in the file types PointM, PolygonM, etc. But we can find many cases in which the “3D” information that applies to the “Extrusion” of flat polygons is found as values ​​of some fields in the data table Import 3D Shapefiles (SHP) in AutoCAD - Data on EED viewer panel Import 3D Shapefiles (SHP) in AutoCAD – Elevation (gnd) and Thickness (height) data

Import 3D Shapefiles (SHP) in AutoCAD

The Shapefile (SHP) data provider included in Spatial Managerfor AutoCAD allows you to import all the 3D SHP files as “real” AutoCAD 3D objects, but also allows you to assign some objects properties ​​when pseudo-3D polygons are imported

The import process is designed to catch the most relevant properties of the AutoCAD objects from the field values in ​​the alphanumeric data tables, regardless of the data provider used in the process. Thus, not only can be captured the parameters relating to blocks, block attributes or layers, but you can also automatically assign elevations and thicknesses to the imported AutoCAD objects

Example: Importing 3D buildings in AutoCAD from a pseudo-3D Shapefile (SHP)

In the example shown in this video, we need to import in AutoCAD the buildings information that belongs to an old project in an area of a city which is stored in a Shapefile, in order to compare the buildings in the project and the current status of the area

The associated alphanumeric data table of the Shapefile includes the Elevation value and the Thickness value of the buildings. We will import the file selecting the appropriate fields in the table for these values

Now, in AutoCAD we can set the geographic location for the city and to get the image of the current area status as a map background in order to compare the buildings in the project and their current image

As we have imported the buildings using a pseudo-3D technique the comparison may also be carried out using 3D views

Please, watch the video:
