How to export elements directly from ZWCAD to KML or KMZ
Easily export your ZWCAD drawings (DWG/DXF) to KML or KMZ in just a simple step with Spatial Manager for ZWCAD
Tutorial for exporting DWG/DXF data from ZWCAD to KML or KMZ files (Google Earth) using Spatial Manager
If you haven’t installed Spatial Manager for ZWCAD yet, you can begin a free trial here. If you’re already a user, be sure to update to the latest version.
Steps for exporting DWG/DXF to KML/KMZ
- Search in the ribbon or toolbar the Export to Google Earth button or execute SPMCREATEKML command directly

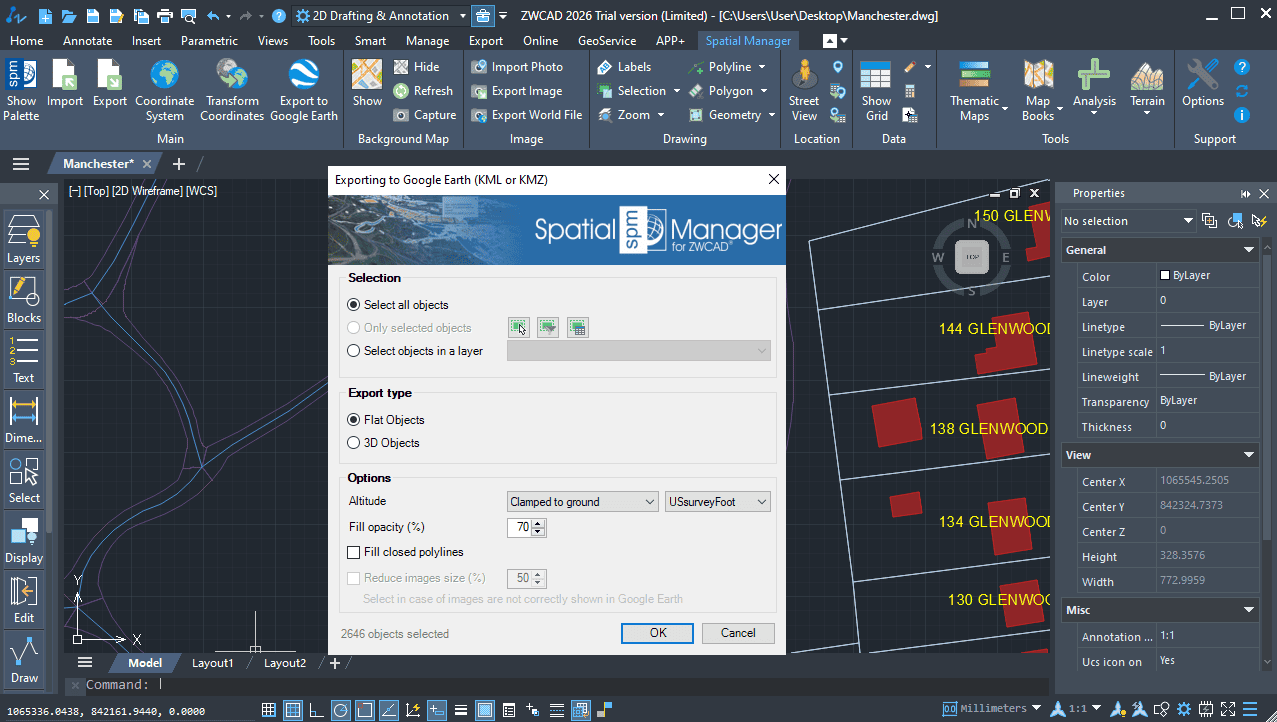

Export to Google Earth button in Spatial Manager ribbon
-
By default the selected objects are exported or the full drawing if the selection is empty. Also the selection can be changed manually or selecting by some data query
-
Select the location from KML or KMZ file
-
Open the exported file with Google Earth
DWG exported to KML/KMZ
Optionally, also an advanced export method is available with additional options:
- Find the Export tool in the main ribbon or execute the SPMEXPORT command.
- Choose the data fields for exporting and add properties
- Select visualization styles, and properties for use as name and description
- Select custom coordinate reference system transformations
Main advantages
- Full process is done in a single step
- All the layer structure and colors are retained
- Coordinate reference system is automatically applied when needed
- Almost any entity types are supported, even texts, raster images and 3D objects.
For more information, you can review the Publishing to Google Earth feature page and the technical documentation
What is the alternative for the inverse process, from Google Earth to ZWCAD?
It can be done using SPMIMPORT command, review the article from Google Earth to ZWCAD.
What are the differences between KML and KMZ files?
They are basically equal, but KMZ files are compressed, so the file size is lower, and they can include other side files like raster images in a single file.
What versions and editions of ZWCAD are compatible?
All versions from ZWCAD V.13 are compatible, editions Pro and Platinum (Classic and Lite editions are not compatible). As soon as Bricsys releases a new version, an updated version of Spatial Manager for ZWCAD will be ready to ensure the compatibility from day-one.
