The power of CAD/GIS in ZWCAD

Spatial Manager for ZWCAD is a powerful ZWCAD plug-in developed for users who need to import, export, transform and manage spatial data in a simple, fast and inexpensive way

try it for free

Import tasks

Save Tasks to replay import processes (including all process parameters) so many times as desired

Spatial Manager™ for ZWCAD Tasks allows you to repeat any import process so many times as desired without needing to enter its parameters again. Manage and execute Tasks in the main application palette

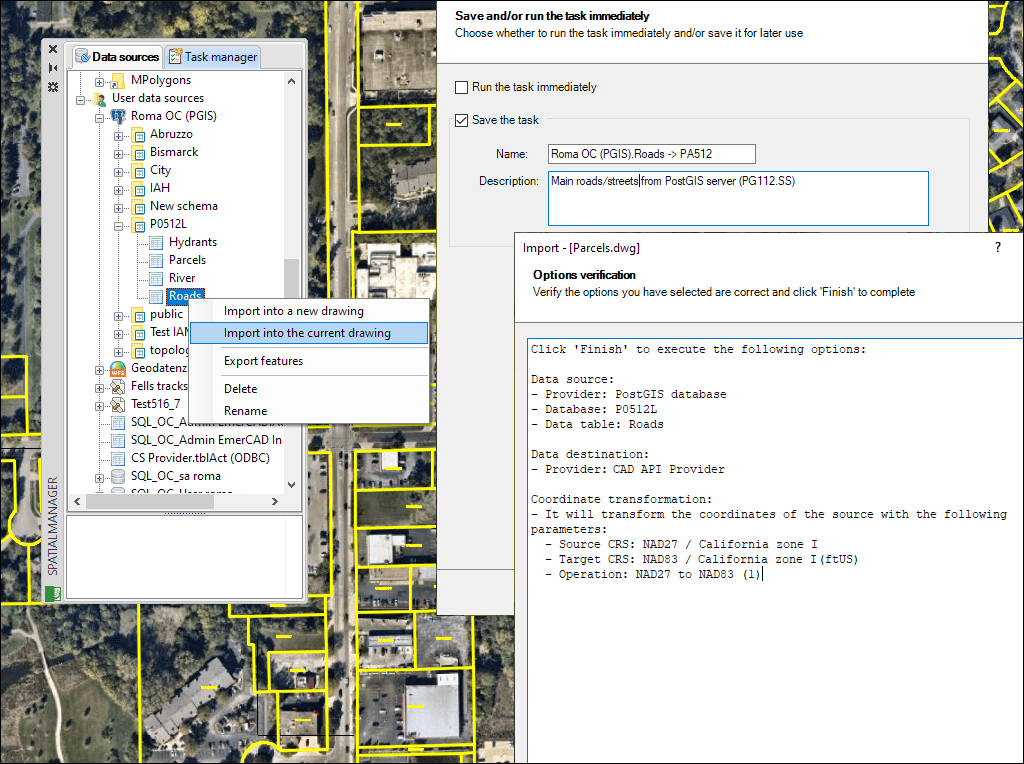

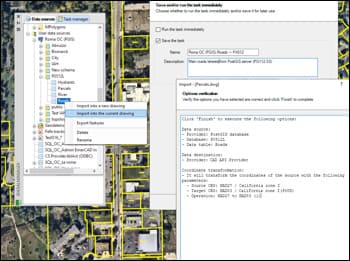

Save Tasks to replay import processes

Spatial Manager Tasks save all the import processes parameters and options in order to repeat these processes so many times as desired

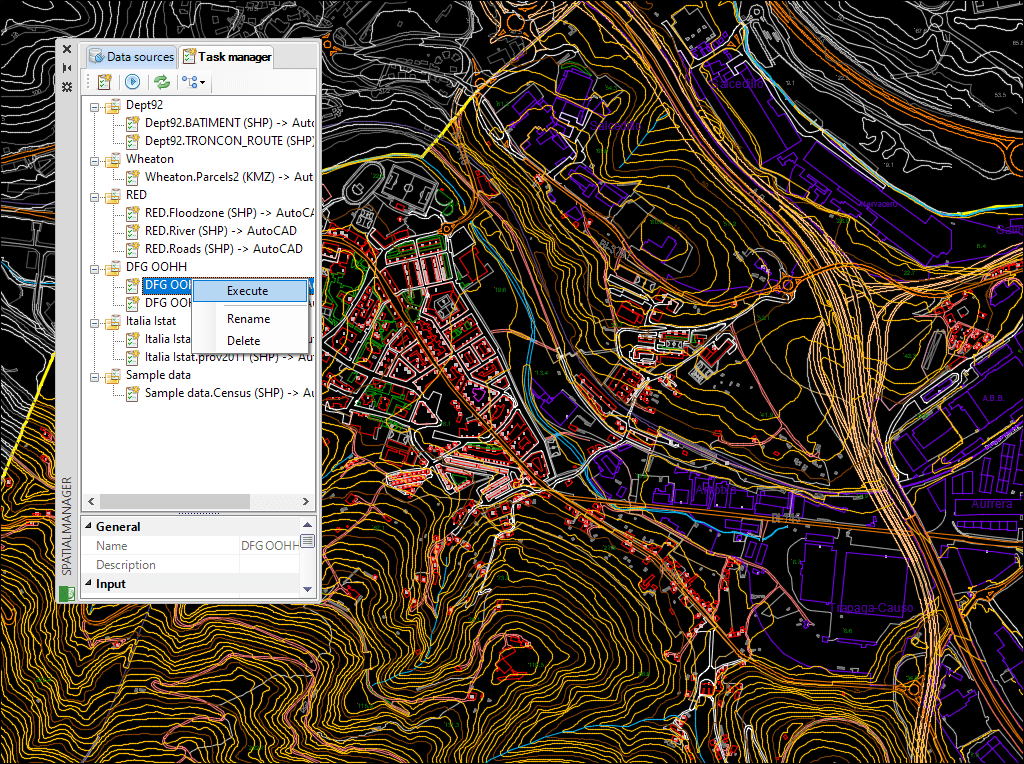

Tasks panel

Execute or manage import Tasks from the "Tasks" panel of the application's main palette

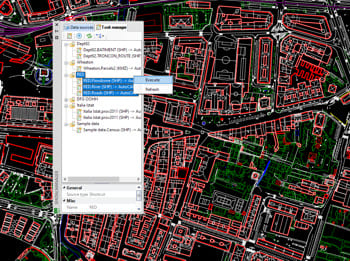

Batch processes

Groups of Tasks to be executed can be selected, making it possible to launch several import processes at once

Resources and Information

frequently asked questions

Current compatible ZWCAD applications:
  • ZWCAD and ZWCAD Architecture
  • Professional edition (Classic and Standard editions are not compatible)
  • Versions: From v.2017 to v.2021 both included
System requirements:
  • Windows 7 or higher
  • 100 MB free disk space, or more
  • Windows Installer 3.1 or later
Spatial files
  • ESRI Shape file - (SHP)
  • Google Earth file - (KML, KMZ)
  • OpenStreetMap file - (OSM, PBF) (1)
  • LiDAR file - (LAS, LAZ) (1)
  • GPS exchange format file - (GPX) (1)
  • ASCII text file - (ASC, CSV, NEZ, TXT, XYZ, UPT)
  • SQLite file - (SQLITE, DB)
  • GeoPackage file - (GPKG) (1)
  • GML file - (GML, GZ, XML)
  • Raster image file - (TIF, PNG, JPG, JPEG, TIFF) (1)
  • Autodesk SDF file - (SDF) (3)
  • MicroStation v.7 file - (DGN) (2)
  • AutoCAD DXF file - (DXF) (2)
  • ESRI ArcInfo export file (ASCII) - (E00) (1) (2)
  • MapInfo file - (TAB) (2)
  • MapInfo interchange format file - (MIF/MID) (2)
  • GeoJSON file - (GEO.JSON) (1) (2)

Spatial raster files
  • Raster image file - (TIF, PNG, JPG, JPEG, TIFF) (1)
    • Georeference sources - (GeoTIFF, World files, Google Earth .GEPRINT, etc.)

Spatial data servers
  • PostGIS database
  • Microsoft SQL Server Spatial database
  • MySQL database (1) (3)

Image map servers
  • WMS Web Map Services (4)
  • WMTS Web Map Tile Services (4)
  • XYZ/TMS Tile Map Services (4)

Other spatial data sources
  • Open Database Connectivity ODBC (1)
  • WFS data store (1)
  • WFS data store (FDO) (1) (3) (5)
  • WFS data store (OGR) (1) (2) (5)

(1) Read-only
(2) OGR data source
(3) FDO provider
(4) Background Maps technology
(5) DEPRECATED - Whenever possible use the native WFS data provider

Note: certain data Providers are only valid for some Editions of the application
