How to import elements from Google Earth into AutoCAD
With just a few clicks, importing data from Google Earth into AutoCAD (DWG/DXF) is a simple and efficient process with Spatial Manager for AutoCAD.
Step-by-Step tutorial for importing Google Earth data into AutoCAD using Spatial Manager
If you haven’t installed Spatial Manager for AutoCAD yet, you can begin a free trial here. If you’re already a user, be sure to update to the latest version.
1. Create your own KML or KMZ file or use an existing one
- If you already have an existing KML or KMZ file, go directly to step 2 and import it.
- Open Google Earth and locate the area of your project.
- Draw your custom elements using the tools from the toolbar (add placemark, polygons or paths).
- You could also add some name and description for further reference.
- Save “My places” to a KML or KMZ file.

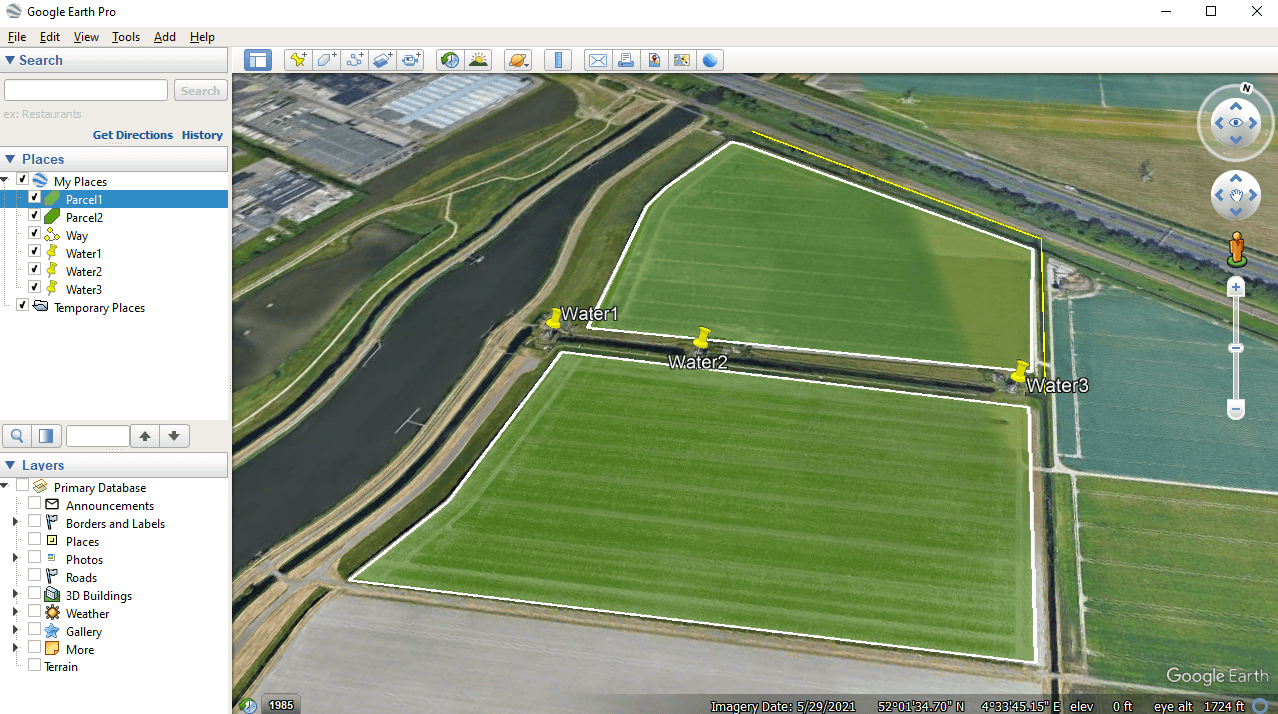

Create objects in Google Earth
2. Import KML or KMZ file from Google Earth into AutoCAD
- Execute SPMIMPORT command.
- Select the KML/KMZ file.
- Choose between a wide range of options like fill polygons or create labels.

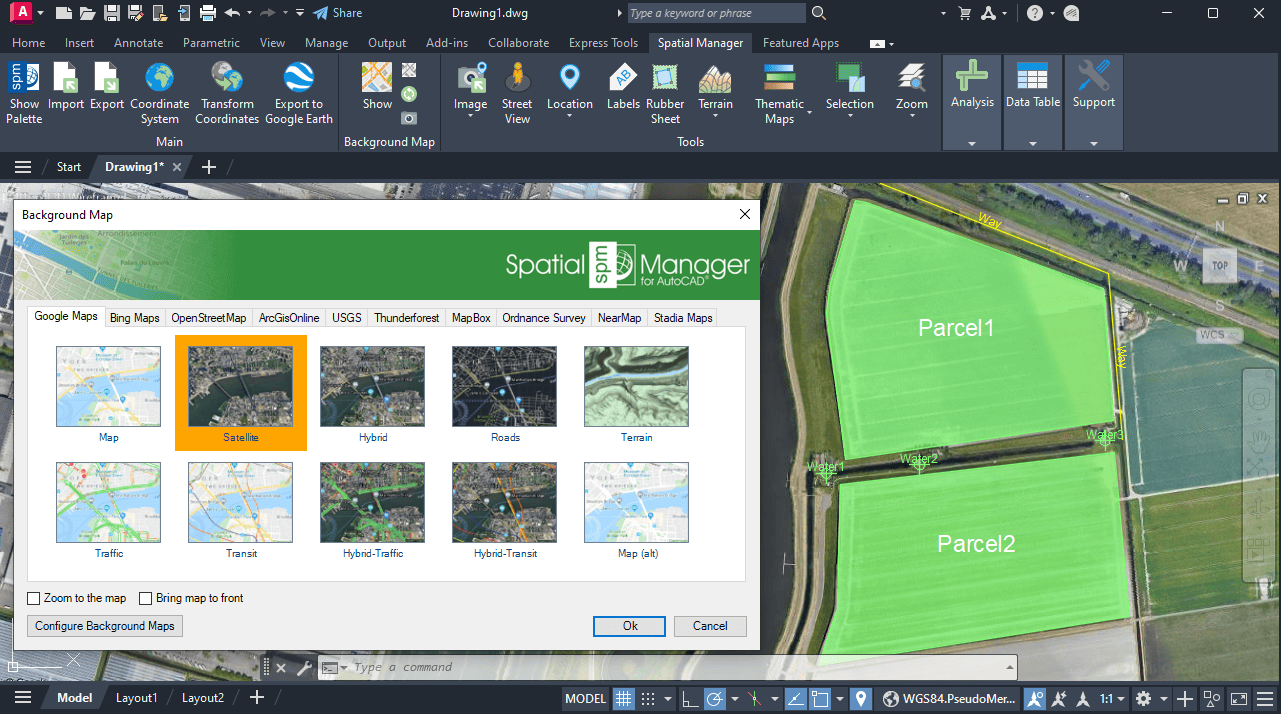

3. Show Google Maps as background (optional)
- Execute SPMBGMAPSHOW command.
- Select any of the available Google Maps style or maps from other sources.
- While changing the view, the background map is updated automatically to the best resolution.

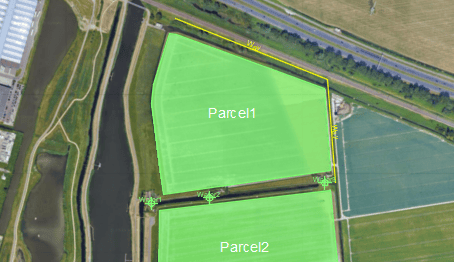

Google Earth file imported into AutoCAD
How could I also import imagery from Google Earth into AutoCAD
It can also be done by Spatial Manager for AutoCAD, for a detailed step-by-step tutorial visit this dedicated article.
What is the alternative if I need the inverse process, from AutoCAD to Google Earth?
It can be done using SPMEXPORT command, review the full export to Google Earth feature.
What happens if the Coordinate Reference System does not match with my drawing?
Automatic coordinate transformation is selected and applied based on the project area. If it still does not fit perfectly, it is possible to make fine adjustments to your geometries to the base map using some drawing tools like rubber sheet.
I would like to have an integrated Google Maps image for any of my projects from different areas
You can use the background maps technology to use Google Maps in AutoCAD.
What versions and editions of AutoCAD are compatible?
All versions from AutoCAD 2013 are compatible and also other vertical Autodesk products like Autodesk Civil 3D or AutoCAD Map 3D. As soon as Autodesk releases a new version, an updated version of Spatial Manager for AutoCAD will be ready to ensure compatibility from day one.
