Data queries in BricsCAD

Use queries to select drawing objects based on attribute conditions

Editions: Standard Professional
What's included in the feature Data queries

Discover the full potential of this set of tools designed to enhance GIS data integration and editing within BricsCAD.

Data queries

Selecting objects in drawings by simple or compound queries. Complete queries or query to the current selection and add the result to the current selection. Selections based on a specific attached table. Zoom into the selected objects.

Data queries<span style='font-size: 1rem;'></span>

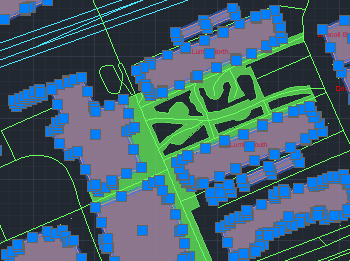

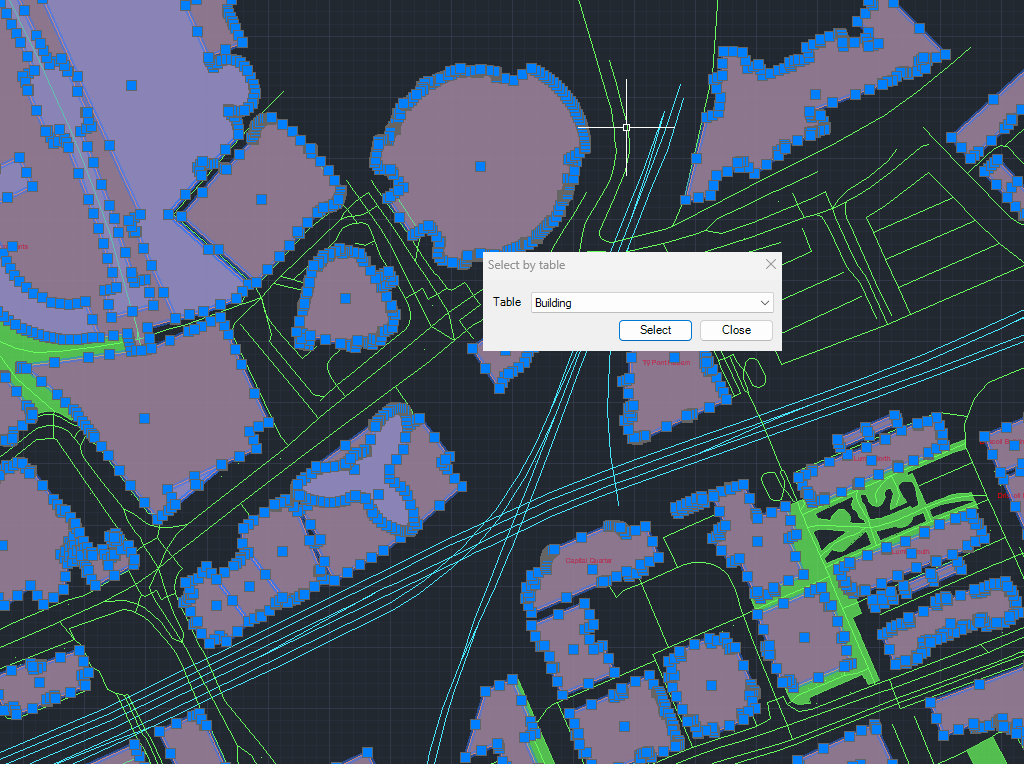

Select by table

Select drawing objects based on a specific attached table.

Select by table<span style='font-size: 1rem;'></span>
Related features
Data table<span style='font-size: 1rem;'> - <a href='../data-table/' class='app_color_link'>More info ></a></span>

Data table

 Enhanced in V10

Data tables provide the structure for associating information with drawing objects. They can be attached automatically during import or manually created by adding fields of various data types.

Data grid<span style='font-size: 1rem;'> - <a href='../data-grid/' class='app_color_link'>More info ></a></span>

Data grid

The Data Grid palette in BricsCAD allows you to view, edit, etc. the objects data for any table in the drawing. You can also select objects from the Data Grid, export the data from the tables and more

* Only available in Professional edition

Fields calculator<span style='font-size: 1rem;'> - <a href='../fields-calculator/' class='app_color_link'>More info ></a></span>

Fields calculator

Calculate in BricsCAD simple or complex expressions using operators and functions that can be applied to field values in a table and/or to constant values

* Only available in Professional edition

Convert data from AutoCAD Map<span style='font-size: 1rem;'> - <a href='../convert-data-from-autocad-map/' class='app_color_link'>More info ></a></span>

Convert data from AutoCAD Map

Import and convert data from AutoCAD Map format to BricsCAD Extended Entity Data (EDD).

Programming with LISP<span style='font-size: 1rem;'> - <a href='../programming-with-lisp/' class='app_color_link'>More info ></a></span>

Programming with LISP

Integrate with your own LISP functions using the API (Application Programming Interface) creating custom data-related operations

* Only available in Professional edition
