How to import elements from Google Earth into BricsCAD
With just a few clicks, importing data from Google Earth into BricsCAD (DWG/DXF) is a simple and efficient process with Spatial Manager for BricsCAD.
Step-by-Step tutorial for importing Google Earth data into BricsCAD using Spatial Manager
If you haven’t installed Spatial Manager for BricsCAD yet, you can begin a free trial here. If you’re already a user, be sure to update to the latest version.
1. Create your own KML or KMZ file or use an existing one
- If you already have an existing KML or KMZ file, go directly to step 2 and import it.
- Open Google Earth and locate the area of your project.
- Draw your custom elements using the tools from the toolbar (add placemark, polygons or paths).
- You could also add some name and description for further reference.
- Save “My places” to a KML or KMZ file.
Create objects in Google Earth
2. Import KML or KMZ file from Google Earth into BricsCAD
- Execute SPMIMPORT command.
- Select the KML/KMZ file.
- Choose between a wide range of options like fill polygons or create labels.

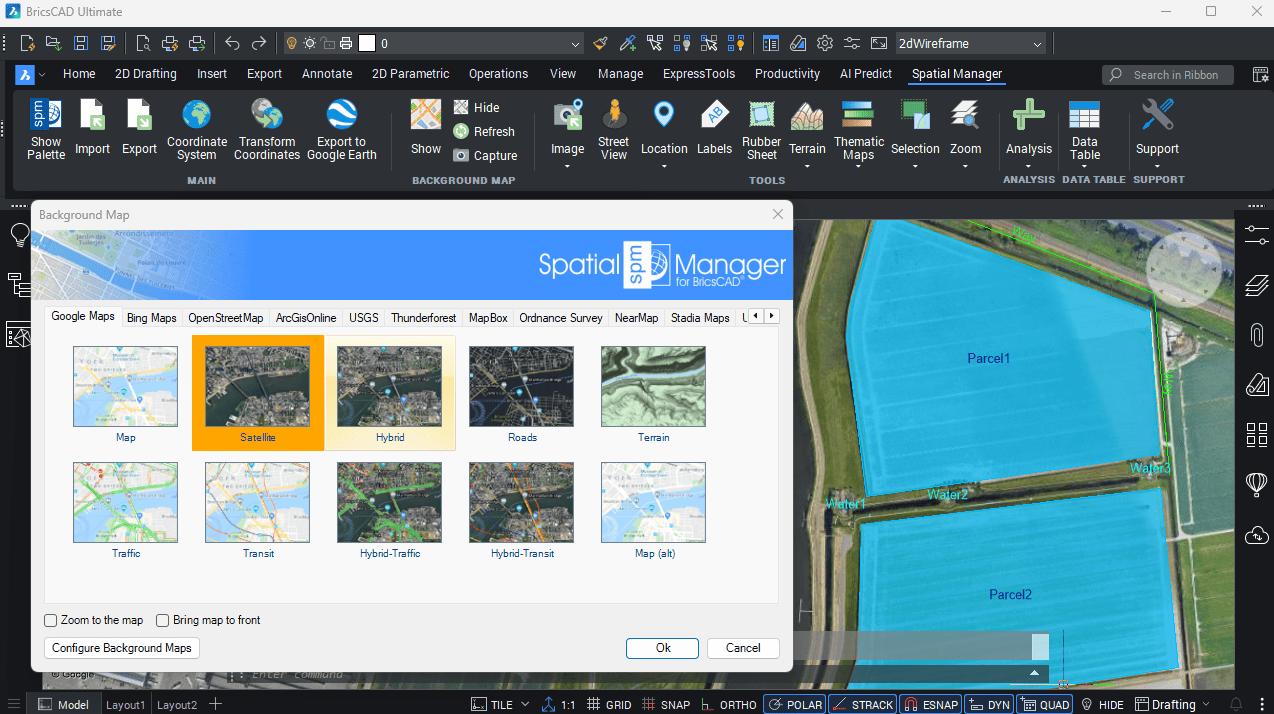

3. Show Google Maps as background (optional)
- Execute SPMBGMAPSHOW command.
- Select any of the available Google Maps style or maps from other sources.
- While changing the view, the background map is updated automatically to the best resolution.

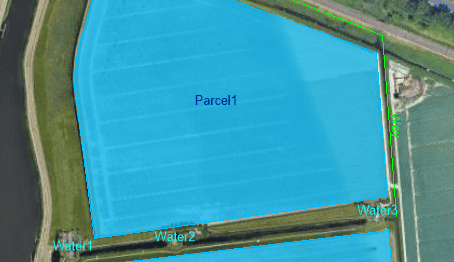

Google Earth file imported into BricsCAD
How could I also import imagery from Google Earth into BricsCAD
It can also be done by Spatial Manager for BricsCAD, for a detailed step-by-step tutorial visit this dedicated article.
What is the alternative if I need the inverse process, from BricsCAD to Google Earth?
It can be done using SPMEXPORT command, review the full export to Google Earth feature.
What happens if the Coordinate Reference System does not match with my drawing?
Automatic coordinate transformation is selected and applied based on the project area. If it still does not fit perfectly, it is possible to make fine adjustments to your geometries to the base map using some drawing tools like rubber sheet.
I would like to have an integrated Google Maps image for any of my projects from different areas
You can use the background maps technology to use Google Maps in BricsCAD.
What versions and editions of BricsCAD are compatible?
All versions from BricsCAD V.13 are compatible, editions Pro and Platinum (Classic and Lite editions are not compatible). As soon as Bricsys releases a new version, an updated version of Spatial Manager for BricsCAD will be ready to ensure the compatibility from day-one.
